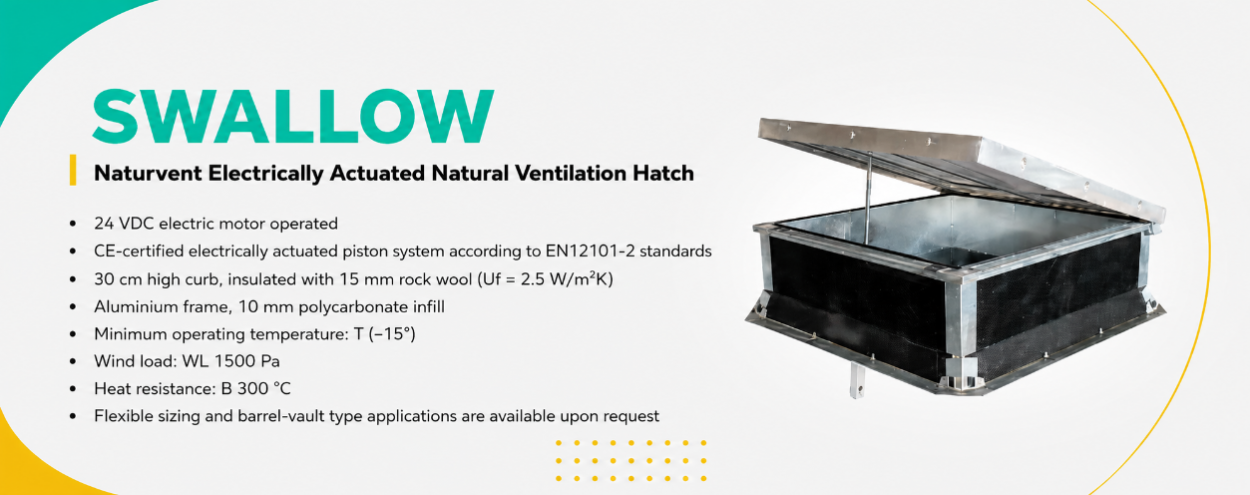

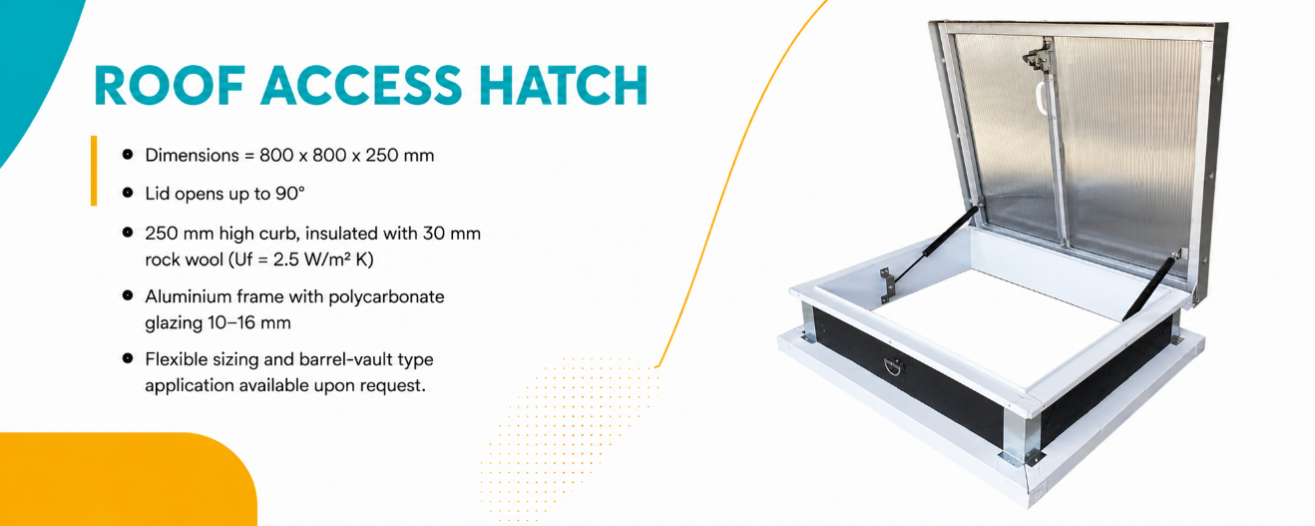

Naturvent natural ventilation windows

  •  Opens using 24 VDC electric motor

  •  Electric piston (CE Certified according to EN12101-2 norms)

  • 30 cm high case, 15 mm (Uf = 2.5W / m2 K) rock wool insulation

  •  Aluminum frame, filling material: polycarbonate 10 mm

  •  Minimum operating temperature: T (–15 °)

  •  Wind load: WL 1500 Pa

  •  Heat resistance: B 300 ° C

  •  Variable sizing and vault type application available upon request

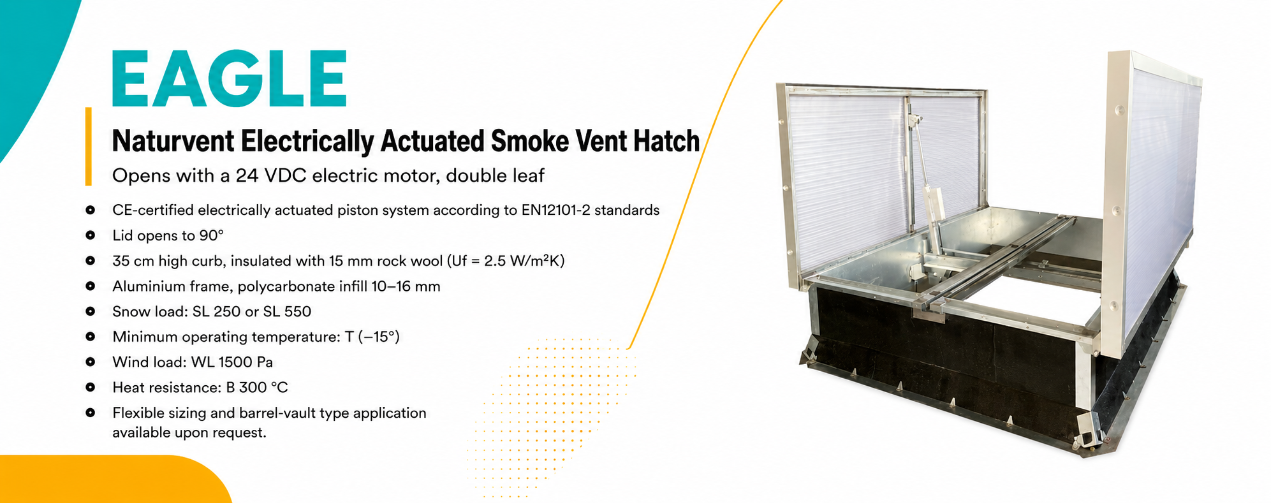

EAGLE



Naturvent Electric Smoke vent

  •  Opens using 24 VDC electric motor, Double leaf
  •  Electric piston (CE Certified according to EN12101-2 norms)
  •  Opening angle up to 90 °
  •  35 cm high case, 15 mm (Uf = 2.5W / m2 K) rock wool insulation
  •  Aluminum frame, filling material: polycarbonate 10-16mm
  •  Snow load: SL 250 or SL 550
  •  Wind load: WL 1500 Pa
  •  Minimum operating temperature: T (–15 °)
  •  Heat resistance: B 300 ° C
  •  Variable sizing and vault type application available upon request

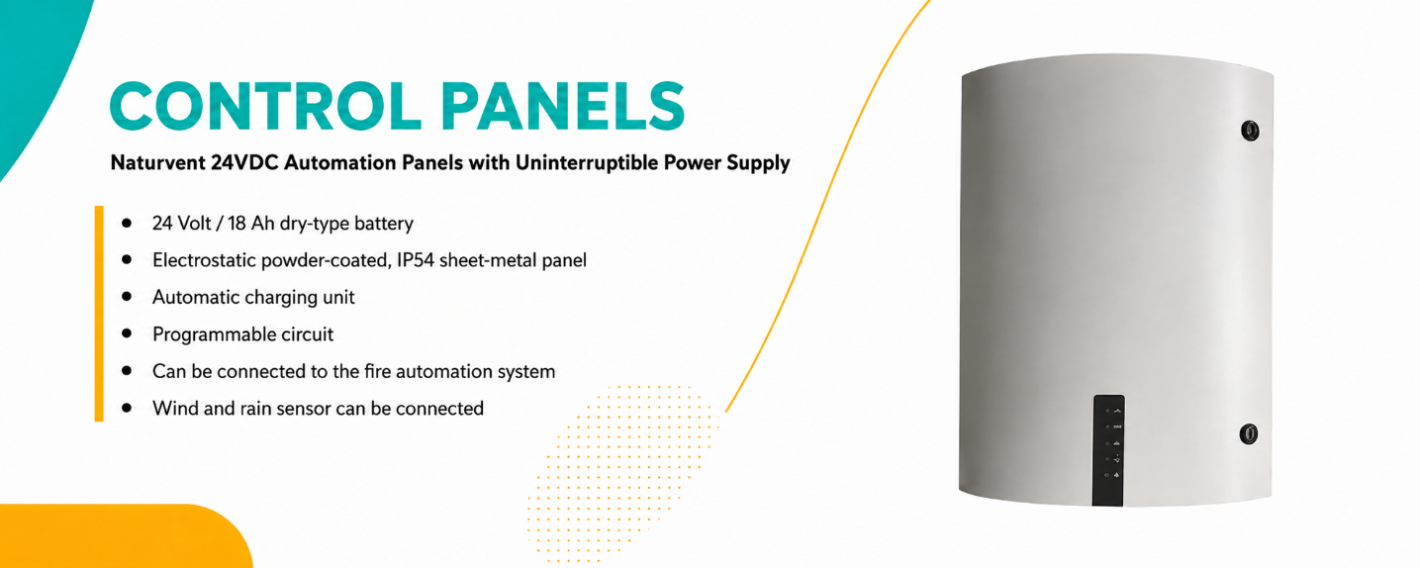

CONTROL PANELS



Naturvent 24VDC Uninterruptible power source Automation panels

  • 24 Volt / 18 Ah dry type battery

  • Electrostatic powder paint coating, IP54 metal sheet  panel

  •  Automatic charging unit

  •  Programmable circuit

  •  Can be connected to fire automation

  •  Wind and rain sensor can be connected

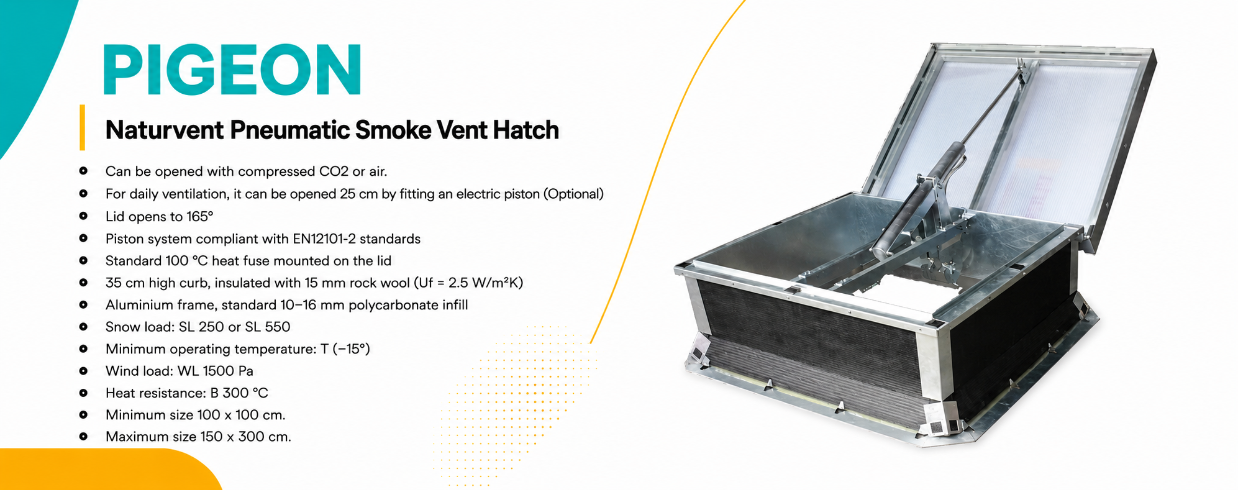

PIGEON



 Naturvent Pneumatic Smoke vent

  • Can be opened using compressed CO2 or air
  • Electric piston can be opened up to 25 cm for daily ventilation (Optional)
  • Opening angle up to 165°
  • Pneumatic piston in accordance to EN12101-2 norm
  • Standard 100° C heat fuse is mounted to the cover
  • 35 cm high case, 15 mm (Uf = 2.5W / m2 K) insulated rock wool
  • Aluminum frame, filling material: polycarbonate 10-16 mm
  • Snow load: SL 250 or SL 550
  • Wind load: WL 1500 Pa
  • Minimum operating temperature: T (–15 °)
  • Heat resistance: B 300 ° C
  • Minimum dimensions 100 x 100 cm
  • Maximum dimensions 150 x 300 cm

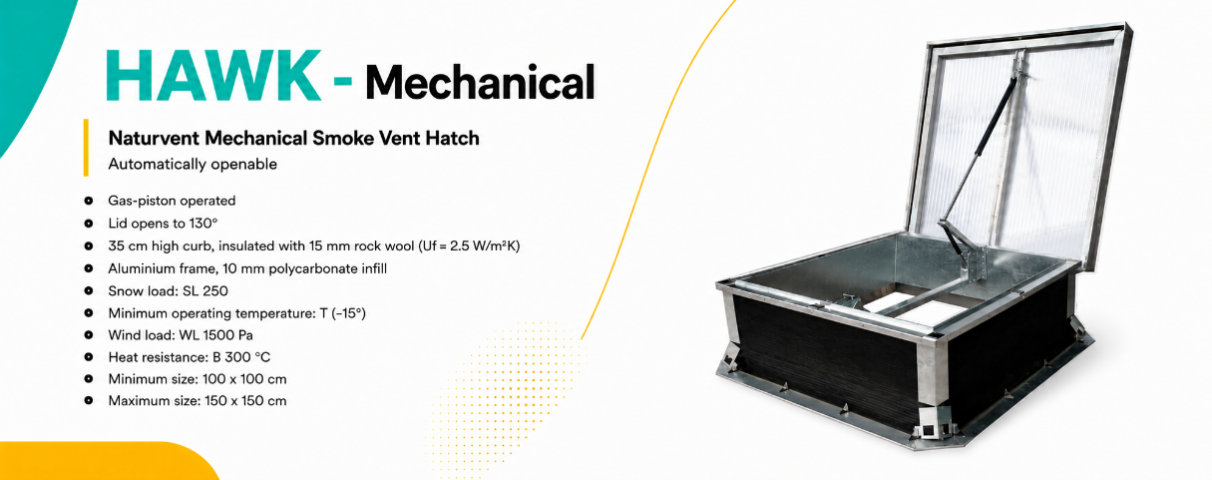

HAWK -Mechanic



Naturvent Mechanical Smoke vent

  • Can be opened automatically and manually
  • Using Gas piston
  • Opening angle up to 130°
  • 35 cm high case, 15 mm (Uf = 2.5W / m2 K) insulated rock wool
  • Aluminum frame, filling material: polycarbonate 10 mm
  • Snow load: SL 250
  • Wind load: WL 1500 Pa
  • Minimum operating temperature: T (–15 °)
  • Heat resistance: B 300 ° C
  • Minimum dimensions 100 x 100 cm
  • Minimum dimensions 150 x 150 cm

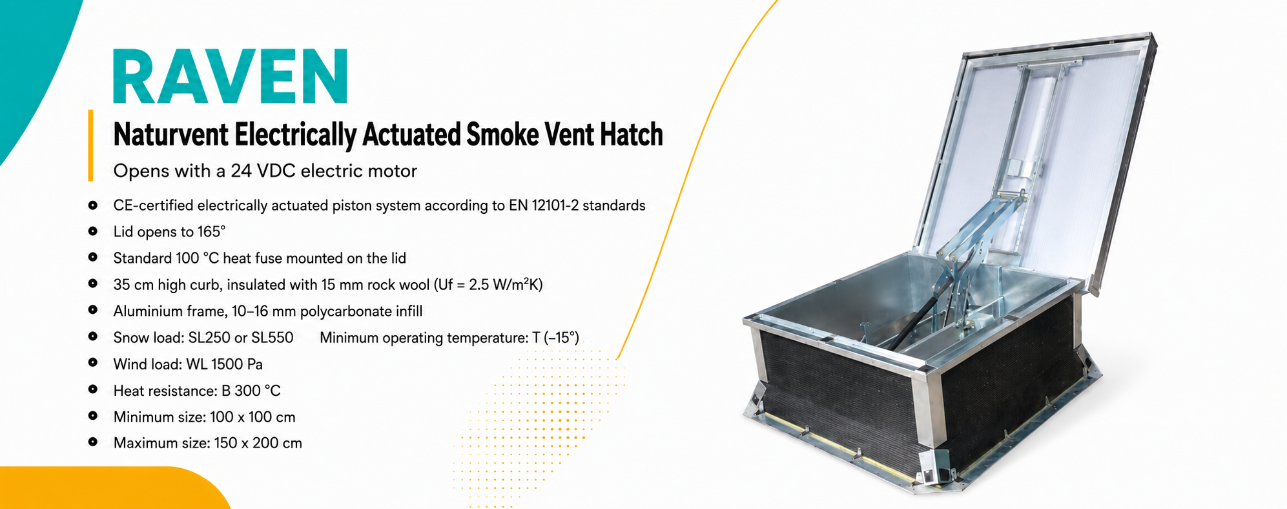

RAVEN



Naturvent Electric Smoke vent

  •  Opens using 24 VDC electric motor

  •  Electric piston(CE Certified according to EN12101-2 norms)

  •  Opening angle up to165°

  •  Standard 100 °C  heat fuse is mounted to the cover

  •  35 cm high case, 15 mm (Uf = 2.5W / m2 K) rock wool insulation

  •  Aluminum frame, filling material:polycarbonate 10-16mm

  •  Snow load: SL250 or SL 550

  •  Wind load: WL 1500 Pa

  •  Minimum operating temperature: T (–15 °)

  •  Heat resistance: B 300 ° C

  •  Minimum dimensions 100 x 100 cm

  •  Maximum dimensions 150 x 200 cm



     PRODUCTS





KONTROL ANAHTARI



  • Dimensions = 70x 70 x 40 mm

  • Current = 10A
  • Voltage = 220V
  • Protection class = IP 54

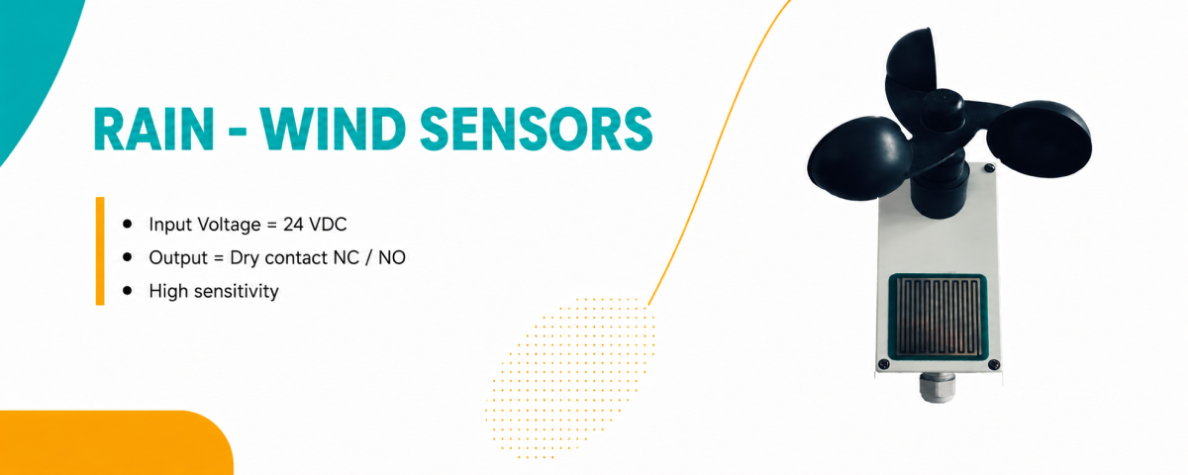

RAIN  & WIND SENSORS



  • Input Voltage = 24VDC
  • Output = Dry contact NC / NO
  • High precision

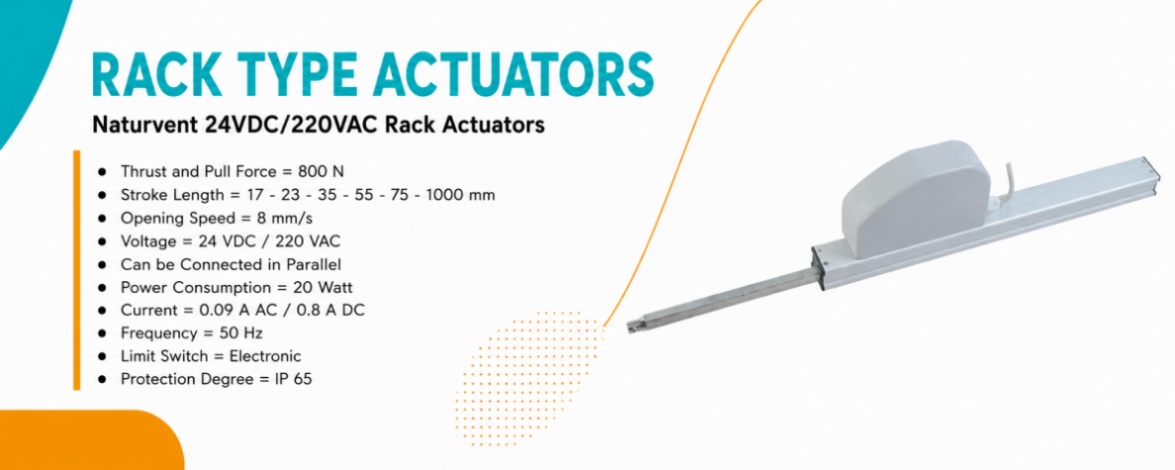

RACK TYPE ACTUATORS



Naturvent 24VDC / 220VAC Rack type actuators

  • Push and Pull Force = 800 N
  • Opening Distance = 17 - 23 - 35 - 55 - 75 - 1000 mm
  • Opening Speed = 8 mm / s
  • Voltage = 24 VDC / 220 VAC
  • Can be connected in parallel
  • Power Consumption = 20 Watt
  • Current = 0.09 A AC / 0.8 A DC
  • Frekans = 50 Hz
  • Limiting Switch = Electronic
  • Protection class= IP 54

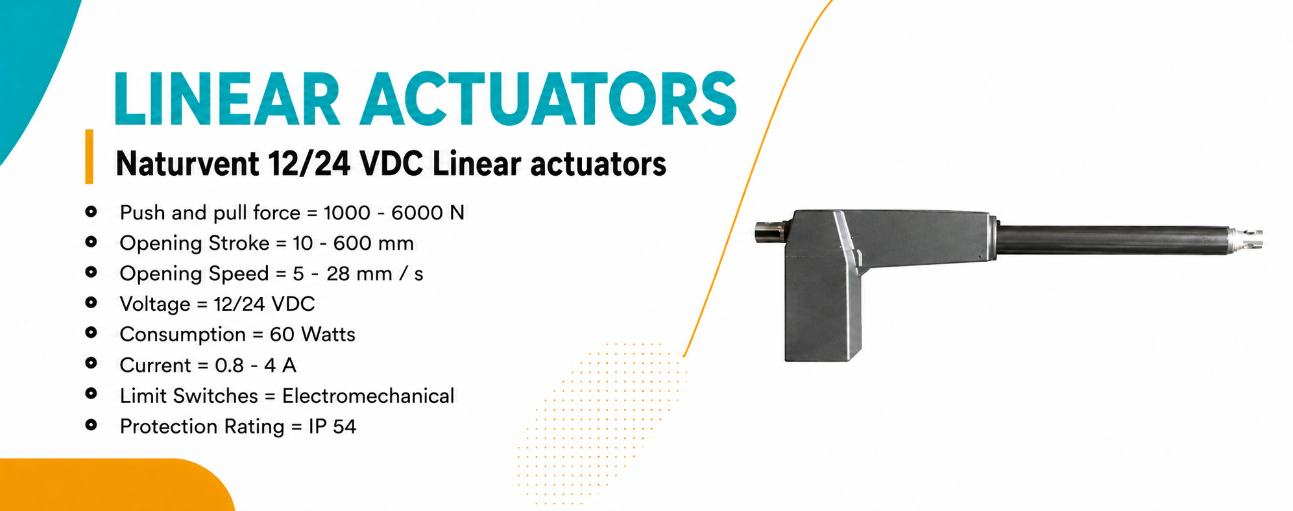

LINEAR ACTUATORS



Naturvent 12/24 VDC linear actuators

  • Push and Pull Force = 1000 - 6000 N
  • Opening Distance = 10 - 600 mm
  • Opening Speed = 5 - 28 mm / sn
  • Voltage = 12/24 VDC
  • Power Consumption = 60 Watt
  • Current = 0.8 -4 A
  • Limiting Switch = Electromechanical
  • Protection class= IP 54
  • Operating temperature = -26 / 65 °C









LINEAR ACTUATORS



Naturvent 12/36 VDC linear actuators

  • Push and Pull Force = 1000 N
  • Opening Distance = 30 - 45 - 60 mm
  • Opening Speed = 5 mm / sn
  • Voltage = 12/36 VDC
  • Power Consumption = 30 Watt
  • Current = 1 A
  • Limiting Switch = Electromechanical
  • Protection class = IP 54
  • Operating temperature = -20 / 75 °C

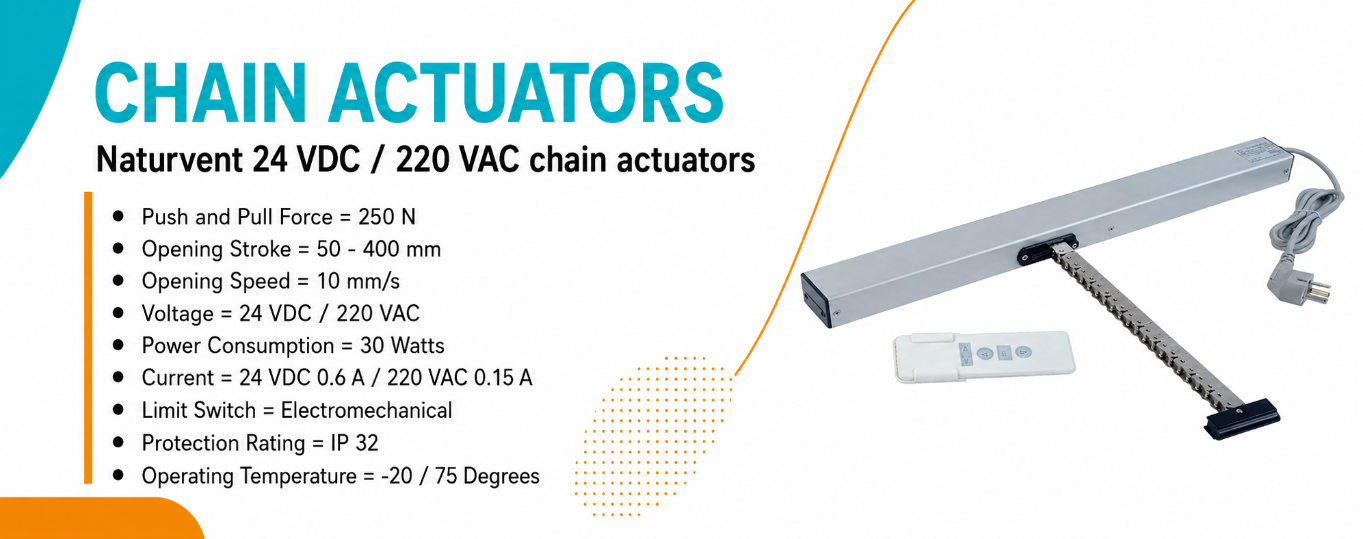

CHAIN ACTUATORS



Naturvent 24 VDC / 220 VAC chain actuators

  • Push and Pull Force = 250 N
  • Opening Distance = 50 - 400 mm
  • Opening Speed = 10 mm / s
  • Voltage = 24 VDC / 220 VAC
  • Power Consumption = 30 Watt
  • Current = 24 VDC 0.6 A / 220 VAC 0.15A
  • Limiting Switch = Electromechanical
  • Protection class = IP 32
  • Operating temperature = -20 / 75 °C

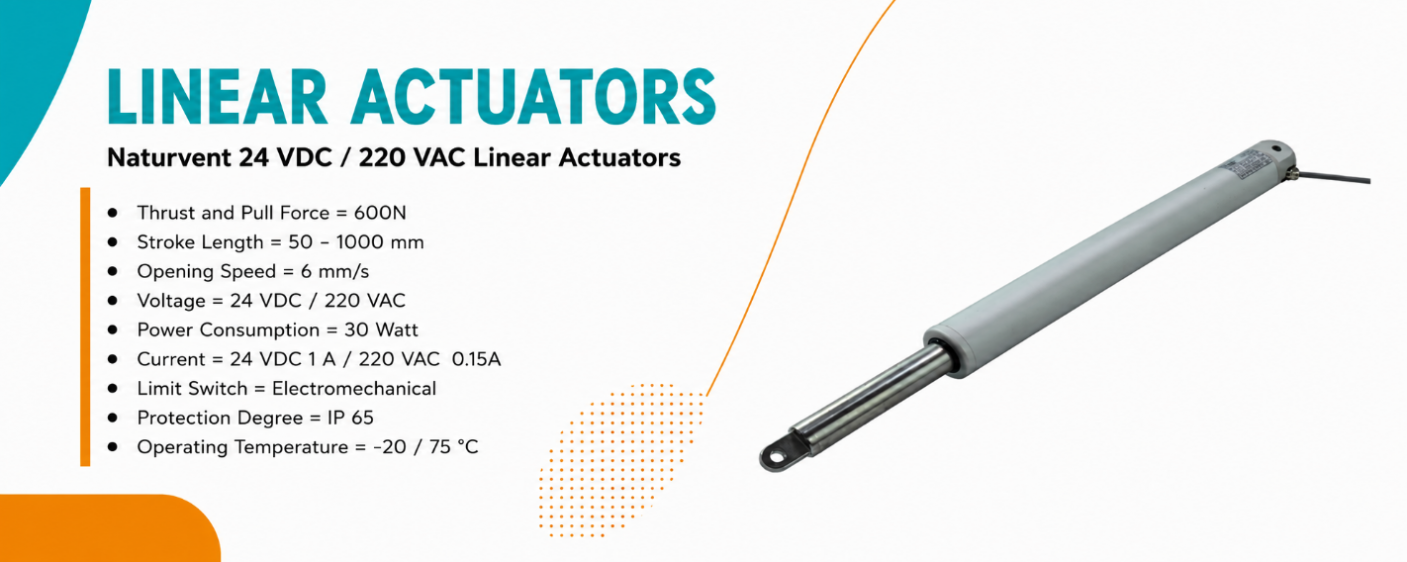

LINEAR ACTUATORS



Naturvent 24 VDC / 220 VAC linear actuators

  • Push and Pull Force = 600N
  • Opening Distance = 50 - 1000 mm
  • Opening Speed = 6 mm / sn
  • Voltage = 24 VDC / 220 VAC
  • Power Consumption = 30 Wattt
  • Current = 24 VDC 1A / 220 VAC 0.15A
  • Limiting Switch = Electromechanical
  • Protection class = IP 65
  • Operating temperature = -20 / 75  °C

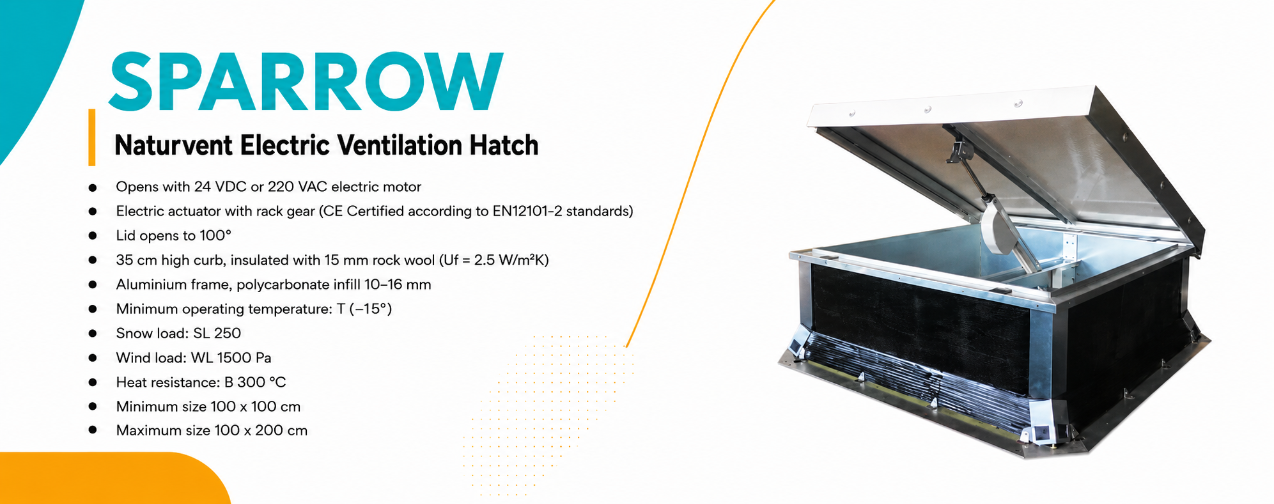

SPARROW



Naturvent Electric Ventilation  vent

  •  Opens using 24 VDC or 220 VAC electric motor

  •  Electric actuator with rack gear (CE Certified according to EN12101-2 norms)

  •  Opening angle up to100 °

  •  35 cm high case, 15 mm (Uf = 2.5W / m2 K) rock wool insulation

  •  Aluminum frame, filling material : polycarbonate 10-16mm

  •  Minimum operating temperature: T (–15 °)

  •  Snow load: SL250

  •  Wind load: WL 1500 Pa

  •  Heat resistance: B 300 ° C

  •  Minimum dimensions  100 x 100 cm

  •  Maximum dimensions 100 x 200 cm

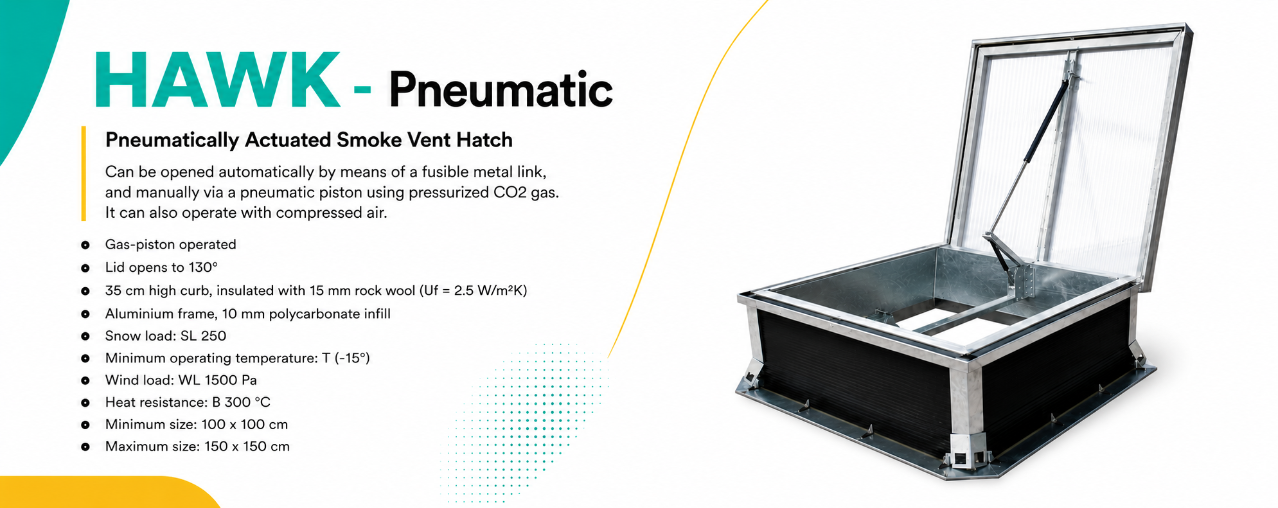

HAWK - Pneumatic


Naturvent Pneumatic Smoke vent

  • It can be opened automatically with the fusible link ,in addition it works the help of pressurized CO2 gas and manually with the help of pneumatic piston. It can also work with compressed air.
  • Using Gas piston
  • Opening angle up to 130°
  • 35 cm high case, 15 mm (Uf = 2.5W / m2 K) insulated rock wool
  • Aluminum frame, filling material: polycarbonate 10 mm
  • Snow load: SL 250
  • Wind load: WL 1500 Pa
  • Minimum operating temperature: T (–15 °)
  • Heat resistance: B 300 ° C
  • Minimum dimensions 100 x 100 cm
  • Minimum dimensions 150 x 150 cm

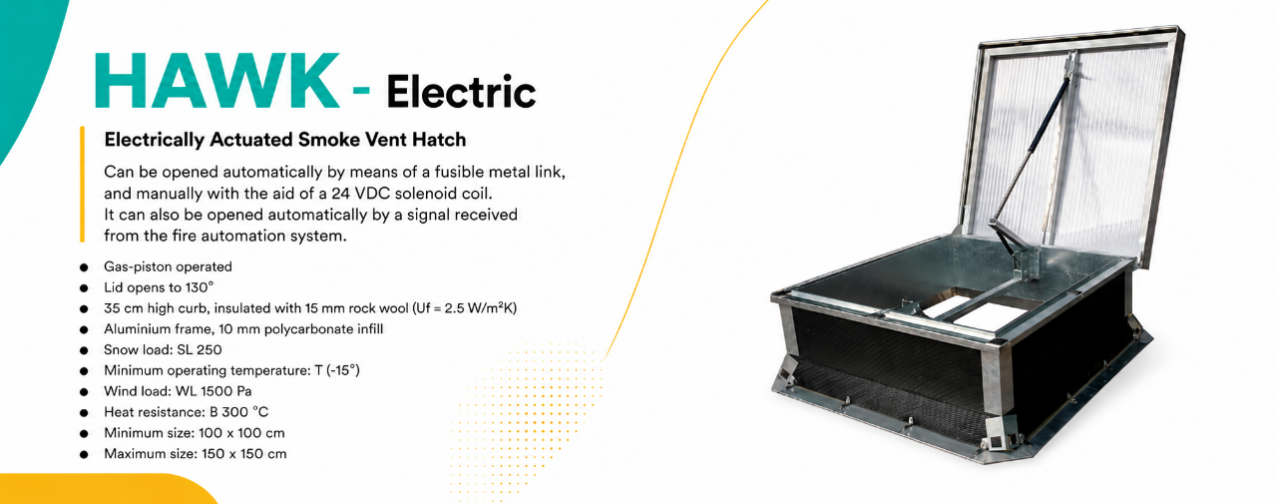

HAWK - Electric



Naturvent Electric Activated Smoke  Vent

  • It can be opened automatically with the fusible link .it works manually with the help of  24V DC solenoid coil. In addition, it can be turned on automatically with the signal detected from the fire automation.
  • Using Gas piston
  • Opening angle up to 130°
  • 35 cm high case, 15 mm (Uf = 2.5W / m2 K) insulated rock wool
  • Aluminum frame, filling material: polycarbonate 10 mm
  • Snow load: SL 250
  • Wind load: WL 1500 Pa
  • Minimum operating temperature: T (–15 °)
  • Heat resistance: B 300 ° C
  • Minimum dimensions 100 x 100 cm
  • Minimum dimensions 150 x 150 cm
